Best Casement Window Plans: The Definitive 2026 Architectural
The casement window occupies a unique position in the hierarchy of architectural apertures. While the ubiquitous double-hung sash dominates the American suburban landscape through sheer historical momentum, the casement—defined by its side-hinged, outward-swinging operation—represents a more deliberate engineering response to the requirements of ventilation, security, and thermal integrity. Best Casement Window Plans. In the transition toward high-performance building envelopes, the casement has emerged as the preferred typology for architects seeking to bridge the gap between traditional aesthetics and the rigorous airtightness standards of the 21st century.
Evaluating the merits of various fenestration strategies requires a departure from surface-level aesthetics. A window is not merely a transparent infill; it is a mechanical system subject to constant gravitational stress, wind loading, and thermal cycling. To choose the most effective configuration, one must analyze the “plan” of the unit—the specific combination of frame substrate, glazing chemistry, and hardware geometry that dictates its long-term viability. This analysis is particularly critical for casements, where the entire weight of the sash is cantilevered off a vertical jamb, creating a unique set of structural challenges that do not exist in sliding or fixed systems.
As we navigate an era of increasing climatic volatility and rising energy costs, the role of the window as a “passive moderator” of the interior environment has never been more vital. The casement’s ability to “scoop” passing breezes and direct them into a living space, combined with its capacity for a true compression seal, makes it an indispensable tool for sustainable design. This article serves as a definitive reference for understanding the variables that constitute the highest tier of casement engineering, providing the intellectual framework necessary to discern high-value architectural assets from mere commodity products.
Understanding “best casement window plans”
To engage with best casement window plans is to move beyond the selection of a brand and into the technical specifications of a building’s “aperture strategy.” A common misunderstanding in the residential market is that a casement is simply a window that opens with a crank. In reality, a “plan” refers to the holistic engineering of the unit: the specific air-chamber design of the extrusion, the placement of multi-point locking sensors, the structural reinforcement of the hinge-side jamb, and the spectrally selective coatings applied to the insulated glass unit (IGU).
The risk of oversimplification in this sector is profound. Homeowners often prioritize the ease of the crank mechanism without considering the “racking” potential of a large sash. A poorly planned casement unit, once it exceeds a certain width-to-height ratio, will inevitably sag under its own weight, compromising the airtight seal and leading to premature hardware failure. Therefore, the “best” plan is one that accounts for the physics of the cantilever, matching the sash weight to the load-bearing capacity of the stainless steel hinges.
Furthermore, a sophisticated plan evaluates the window’s role in the building’s “ventilation path.” Unlike sliding windows, which can only open to 50% of their frame size, a casement offers a 100% clear opening. However, the direction of the swing—whether it opens to the left or right—must be strategically planned based on the prevailing wind patterns of the site. A “scooping” casement on the windward side of a home can increase natural air changes per hour (ACH) by over 30% compared to a standard sash, turning the window into an active component of the home’s cooling system.
Contextual Evolution: From Timber Hinges to Composite Engineering
The casement is arguably the oldest form of movable window, predating the sash windows of the Georgian and Federal periods. Early European casements were often narrow, leaded-glass affairs held in heavy timber or wrought iron frames. These units were functionally limited by the weight of the glass and the lack of sophisticated weatherstripping, leading to significant air leakage.
The mid-20th century saw the introduction of the “rotary operator” (the crank), which allowed for the use of screens on the interior—a major advancement for the American market. However, the real revolution occurred in the late 1990s with the development of multi-point locking systems. By engaging the sash at three or more points along the frame, engineers could finally achieve a compression seal that rivaled that of a refrigerator door.
Today, in 2026, the evolution has moved toward “material hybridization.” We are seeing the rise of casements that utilize pultruded fiberglass for structural rigidity, vinyl for thermal breaks, and aluminum cladding for exterior durability. This systemic approach ensures that the “plan” addresses the disparate requirements of interior comfort and exterior resilience simultaneously.
Conceptual Frameworks for Fenestration Analysis
To evaluate varied window specifications, professionals utilize specific mental models that bridge the gap between building science and architectural design.
1. The Cantilever Load Framework
This model treats the casement sash as a structural beam fixed at one end. It calculates the “moment” or rotational force exerted on the jamb. A plan that fails to include a continuous structural reinforcement in the hinge-side jamb is fundamentally flawed, as the screws holding the hinges will eventually pull through the substrate.
2. The Compression Seal Mental Model
Unlike sliding seals (found in double-hung or sliding windows) which rely on “brushes” or “pile” that wear down over time, a casement utilizes a compression gasket. This model views the window as a pressure vessel. The efficacy of the plan is judged by the “sealant bite” and the elasticity of the EPDM or silicone gaskets used to create the airtight boundary.
3. The Solar Heat Gain Logic
This framework evaluates the window’s glass package based on orientation. In a casement plan, because the glass area is typically larger (due to fewer muntins or rails), the Solar Heat Gain Coefficient (SHGC) becomes the primary driver of interior cooling loads. A successful plan utilizes varied Low-E coatings for different facades of the building to balance winter heat gain and summer rejection.
Primary Categories of Casement Variations
Understanding the trade-offs between different casement configurations is essential for long-term satisfaction.
For coastal environments, the logic dictates a fiberglass or high-grade aluminum frame to resist salt-air corrosion. In a dense urban environment, the “French Casement” is often selected for its ability to serve as an emergency egress in tight spaces. The “Push-Out” variety is increasingly popular in modern farmhouse designs, though it requires high-friction hinges to prevent the sash from swinging wildly in a gust of wind.

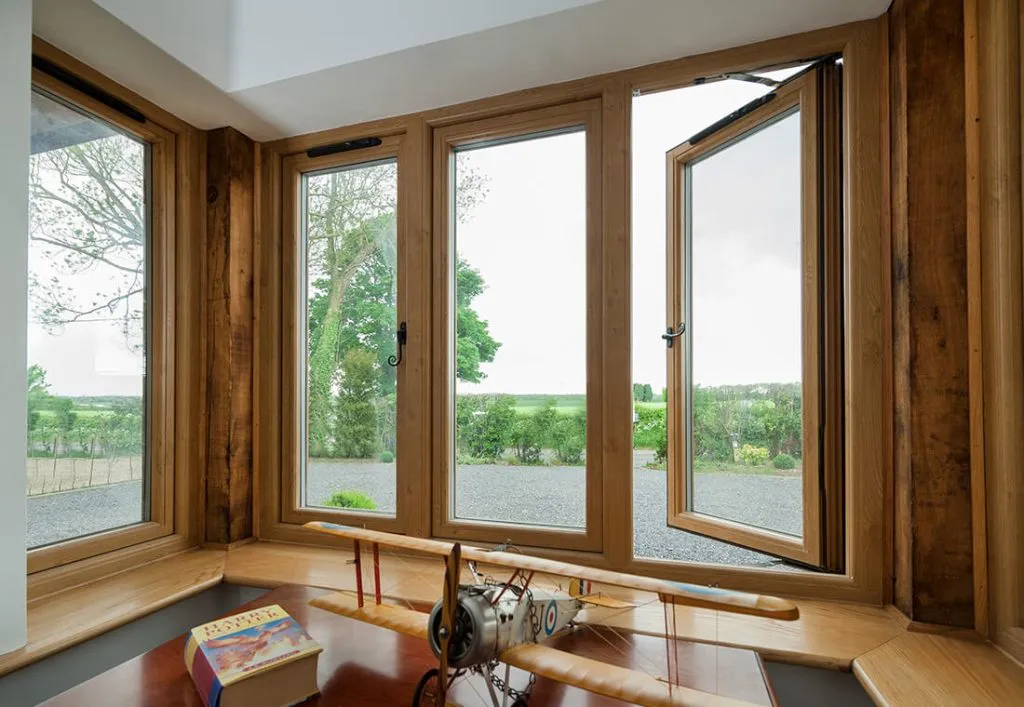

Real-World Scenarios and Climatic Modeling Best Casement Window Plans
Scenario 1: The Coastal High-Wind Zone
A project on the Florida coast requires a window that can withstand Design Pressure (DP) ratings of 50 or higher.
-
The Plan: Fiberglass-reinforced casements with laminated “impact” glass.
-
The Nuance: The hinges must be 316-grade stainless steel to prevent “pitting” from salt spray.
-
Failure Mode: Selecting a vinyl casement without internal steel reinforcement; the frame may twist during a hurricane, breaking the glass seal.
Scenario 2: The Urban Passive House
A multi-family development in Seattle aims for ultra-low energy consumption.
-
The Plan: Triple-pane, uPVC casements with argon gas and a “warm-edge” spacer.
-
The Nuance: Using a “tilt-turn” hybrid casement that allows for secure micro-ventilation at the top while maintaining a massive compression seal when locked.
-
Second-Order Effect: The extreme airtightness requires a mechanical Heat Recovery Ventilator (HRV) to maintain indoor air quality.
Economics of Selection: Cost, Value, and Lifecycle Dynamics
The true cost of a window is a function of its “Total Cost of Ownership” (TCO) over 30 years.
Cost and Value Matrix (Estimated 2026)
Opportunity Cost: Opting for a cheaper double-hung window instead of a casement in a bedroom may save $300 upfront but can result in a lifelong increase in cooling costs due to the inherently “leakier” nature of sliding sashes. Furthermore, casements often command a 10-15% premium in home appraisal values due to their “architectural” status.
Tools, Strategies, and Installation Support Systems
The success of best casement window plans is entirely dependent on the “installation ecosystem.”
-
Low-Expansion Polyurethane Foam: Critical for air-sealing the gap between the window frame and the rough opening without bowing the jambs.
-
Self-Adhering Flashing Membranes: Ensures that any water that penetrates the siding is directed away from the window’s “wet zone.”
-
Shim Stacking Logic: For casements, shims must be placed strategically under the hinge-side and the locking-side to ensure the frame stays perfectly square.
-
Laser Leveling: Essential for sashes over 30 inches wide; even a 1/16-inch “out of plumb” error will cause a casement sash to “drift” open or closed.
-
Spectrally Selective Coatings: Choosing the right “tint” (which is often invisible) to block UV rays that fade furniture while allowing visible light.
-
Hardware Torque Check: Ensuring that the crank mechanism is not “over-tightened” at the factory, which can strip the internal gears.
Risk Landscape: Identifying Failure Modes
A window is a moving part of a building, and moving parts are subject to entropy.
-
Sash Sag (Hinge Fatigue): The most common failure in wide casements. It starts as a “rubbing” at the bottom of the frame and ends with the window being impossible to lock.
-
Secondary Seal Failure: When the “spacer” between the glass panes fails, allowing moisture into the IGU. This is often caused by chemical incompatibility between the window sealant and the installation caulk.
-
Gear Stripping: Occurs when a user tries to “crank” the window shut against an obstruction (like a curtain or a pebble in the track).
-
Thermal Bridging: In cheap aluminum frames, heat “leaks” through the metal, causing condensation and mold on the interior drywall.
Governance, Maintenance, and Long-Term Adaptation
To ensure a 40-year lifespan, a casement unit requires a systematic maintenance cycle.
-
Semi-Annual Track Cleaning: Dirt and salt in the bottom track act as an abrasive, wearing down the sliding “shoes” of the operator.
-
Hardware Lubrication (Annual): Using a dry silicone spray on the hinges and the “operator arm” prevents the friction that leads to gear stripping.
-
Weatherstripping Restoration: Over 15 years, gaskets can become “set” in a compressed position. Replacing these gaskets can restore a window’s original U-factor for a fraction of the cost of replacement.
-
The “Daylight Check”: Once a year, close the window on a piece of paper. If you can pull the paper out easily, the multi-point locks need adjustment.
Measurement, Tracking, and Evaluation Metrics
How do we prove a casement plan is working?
-
Leading Indicator: Air Infiltration Rating. Look for units with a rating of 0.05 cfm/ft² or lower. Casements routinely outperform double-hung units here by a factor of four.
-
Lagging Indicator: Interior Glass Temperature. On a cold night, use an infrared thermometer. A high-performing triple-pane casement should have an interior surface temperature within 5 degrees of the room air.
-
Quantitative Signal: Utility Bill Normalization. Tracking energy use before and after installation, normalized for “Heating Degree Days” (HDD).
Common Misconceptions and Industry Corrections
-
Myth: “Casement windows are easy to break into.”
-
Correction: Casements are actually the most secure operable window. Because the hardware is on the interior and the sash is “hooked” into the frame at multiple points, they are virtually impossible to pry open from the outside.
-
-
Myth: “Vinyl casements always warp.”
-
Correction: Modern uPVC with “high-titanium-dioxide” content is highly resistant to UV degradation. Warping is almost always a result of poor installation or dark paint colors not intended for vinyl.
-
-
Myth: “Screens on the inside look ugly.”
-
Correction: Modern “invisible” mesh screens are nearly imperceptible. Furthermore, interior screens stay clean longer and are easier to remove for winter storage.
-
-
Myth: “You can’t have a large casement window.”
-
Correction: With modern “heavy-duty” hinges, casement sashes can now reach up to 40 inches in width, though this requires a fiberglass or steel-reinforced frame.
-
Ethical and Practical Considerations
In the pursuit of performance, one must not neglect the “human factor.” Casements can be difficult to operate for individuals with limited mobility or arthritis, as the cranking motion requires a specific range of wrist rotation. In “Aging in Place” designs, the placement of the crank—whether at the bottom or the side—becomes an ethical consideration of accessibility.
Additionally, the environmental impact of window disposal is significant. When planning for replacement, choosing a “Circular Economy” manufacturer—one that uses recycled vinyl or sustainably harvested timber—reduces the “embodied carbon” of the building.
Conclusion: The Synthesis of Performance and Form
The selection of best casement window plans is an exercise in technical foresight. It is the acknowledgement that a window is a long-term architectural investment that must perform under the relentless pressures of gravity and climate. By prioritizing a compression-seal strategy, matching sash weight to hinge capacity, and selecting materials that mirror the thermal behavior of glass, one can create a building envelope that is both resilient and restorative.
Ultimately, the casement window is more than a way to see the world; it is a machine for living. Its success is not measured in the beauty of its trim, but in the silence of its seal on a stormy night and the freshness of the breeze it captures on a summer afternoon. In a world of fleeting trends, best casement window plans, the well-planned casement remains a monument to the enduring value of good engineering.
