Best Window Installation for Soundproofing: A 2026 Technical

The modern urban environment is characterized by a relentless acoustic barrage. As metropolitan density increases and transportation networks expand, the physiological and psychological impact of ambient noise—ranging from the low-frequency thrum of jet engines to the high-frequency screech of emergency sirens—has become a primary concern for homeowners and developers alike. Best Window Installation for Soundproofing. In the architectural hierarchy, the window is the most vulnerable point of entry for sound. While walls are thick, multi-layered assemblies of high-mass materials, windows are comparatively thin membranes that must reconcile the need for transparency with the physics of wave attenuation.

Achieving acoustic tranquility requires more than simply purchasing a premium product. It necessitates a systemic understanding of how sound energy travels through disparate mediums. Sound does not merely “pass through” a window; it vibrates the glass, leaks through microscopic gaps in the frame, and bypasses poorly sealed rough openings. Consequently, the search for the optimal acoustic environment is a multi-disciplinary challenge involving material science, mechanical engineering, and precision craftsmanship.

In 2026, the industry has moved beyond the rudimentary “double-pane” solution. The current landscape utilizes laminated glass interlayers, varied pane thicknesses to break harmonic resonance, and specialized “super-spacer” technologies. However, even the most advanced acoustic unit will fail if the interface between the window and the building envelope is neglected. This article provides a definitive, analytical deep dive into the technical frameworks and strategic methodologies that constitute the highest tier of acoustic performance in modern fenestration.

Understanding “best window installation for soundproofing”

The term best window installation for soundproofing is frequently co-opted by marketing channels to promote specific products, yet a technical analysis reveals that “soundproofing” is a misnomer. In the realm of physics, we deal with “sound transmission loss.” No window can achieve absolute silence; rather, we aim to reduce the Sound Transmission Class (STC) or Outdoor-Indoor Transmission Class (OITC) to a level where ambient noise falls below the threshold of human irritation.

A significant misunderstanding in the consumer market is the reliance on the window unit alone. Many property owners invest thousands in high-STC glass only to find that the noise persists. This is often due to “flanking paths”—indirect routes where sound bypasses the window through wall cavities, electrical outlets, or, most commonly, the perimeter seal of the window frame. A true acoustic installation treats the window as a component of a larger wall assembly, requiring that every cubic millimeter of the rough opening be hermetically sealed with high-mass materials.

Oversimplification also plagues the discussion of glass types. It is often assumed that triple-pane windows are inherently better for sound than double-pane units. In reality, a standard triple-pane window can actually perform worse than a specialized double-pane unit if the air gaps between the panes are too small, leading to a “mass-air-mass” resonance that amplifies specific frequencies. Understanding the best window installation for soundproofing requires moving beyond “more layers” toward a nuanced strategy of mass decoupling and damping.

Contextual Evolution: From Single Panes to Acoustic Laminates

Historically, windows were designed for light and ventilation, with acoustic performance being a secondary, unintentional byproduct. Single-pane windows, prevalent until the mid-20th century, offered negligible resistance to sound, acting as drums that vibrated in sympathy with exterior noises. The introduction of double-pane “insulated glass” in the 1950s was driven by thermal concerns, but it introduced the concept of the “air gap,” which provided the first meaningful reduction in high-frequency noise.

The 1980s and 90s saw the emergence of laminated glass, originally developed for safety and hurricane resistance. Engineers soon realized that the polyvinyl butyral (PVB) interlayer used to hold the glass together acted as a high-performance damping agent. Unlike rigid glass, the PVB layer is visco-elastic; it absorbs sound energy and converts it into trace amounts of heat rather than allowing it to pass through as vibration.

Today, in 2026, the evolution has culminated in “acoustic-grade” laminates and vacuum-insulated glazing (VIG). We have moved from a “brute force” approach of using thicker glass to a “sophisticated damping” approach. Modern installations now account for the specific frequency profile of the noise source—whether it be the low-frequency rumble of a nearby railway or the mid-frequency chatter of a sidewalk cafe—allowing for surgical precision in acoustic planning.

Conceptual Frameworks for Acoustic Management

To evaluate a soundproofing strategy, professionals utilize three primary mental models.

1. The Mass-Air-Mass Framework

This model describes how sound interacts with multiple barriers separated by a space. To maximize transmission loss, the mass of the barriers should be high and the air space between them should be as wide as possible. If the air space is too narrow, the air acts like a spring, transferring vibration directly from one pane to the next.

2. The Dissimilar Mass Principle

If two panes of glass have the same thickness, they will have the same “coincidence frequency”—a specific pitch at which they vibrate easily. This allows sound to “leak” through at that frequency. By using panes of different thicknesses (e.g., 3mm and 5mm), the coincidence frequencies are offset, ensuring that one pane blocks what the other lets through.

3. The Hermetic Continuity Model

This framework posits that an acoustic barrier is only as strong as its weakest point. A gap representing only 1% of the window’s surface area can result in a 10dB increase in noise. This model dictates that the installation must be “vapor-tight and air-tight,” utilizing backer rods and non-hardening acoustic sealants.

Key Categories of Sound-Dampening Assemblies

Selecting the right assembly involves balancing budget, weight, and the specific noise profile.

Assembly Type	Mechanism	Trade-offs	STC Rating Range
Standard Double-Pane	Thermal air gap	Poor low-frequency damping	26–28
Dissimilar Glass	Offset resonance	Slight weight increase	30–34
Laminated Glass	Visco-elastic damping	Higher cost; UV protection	35–39
Secondary Glazing	Massive air gap (2–4 inches)	Aesthetic impact; complex cleaning	40–45+
Acoustic Triple-Pane	Lamination + Dissimilar panes	Heavy; high structural load	38–43

Realistic Decision Logic

The decision-making process should be “Frequency Dependent.” If the goal is to block voices or birds, dissimilar glass is often sufficient. However, if the goal is to block traffic or aircraft noise, laminated glass is non-negotiable. For extreme environments near airports, “Secondary Glazing”—adding a separate window unit 4 inches behind the existing one—remains the gold standard, as no single-frame unit can provide the necessary air buffer to decouple low-frequency rumbles.

Real-World Scenarios and Climatic Constraints Best Window Installation for Soundproofing

Scenario 1: The Urban Condo (Mid-Frequency Focus)

A resident in a downtown high-rise suffers from siren and construction noise.

• The Strategy: Replace standard sashes with laminated glass units using a 0.75mm acoustic interlayer.

• Constraint: The building’s aesthetic must remain unchanged, precluding external secondary windows.

• Failure Mode: Neglecting the window frame’s “weep holes.” In some frames, these drainage paths allow sound to enter. Specialized acoustic baffles must be used.

Scenario 2: The Airport Perimeter Home (Low-Frequency Focus)

A home located directly under a flight path.

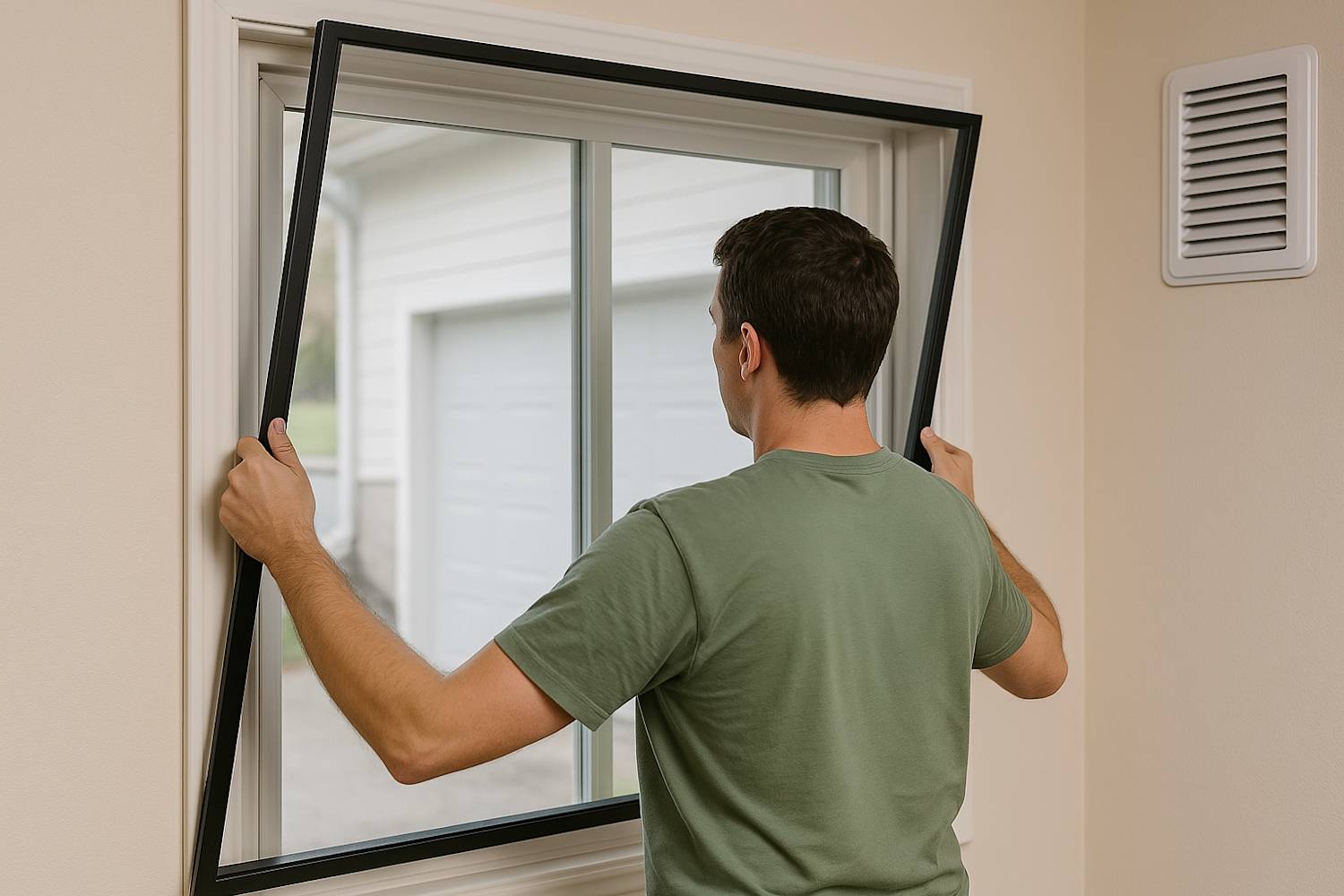

• The Strategy: High-mass secondary glazing. An interior acoustic window is installed in the deep window sill, creating a 100mm air gap.

• Constraint: This requires significant structural depth in the wall.

• Second-Order Effect: The secondary window also provides world-class thermal insulation, significantly lowering energy bills.

Economics of Acoustic Planning: Costs and Value

The economics of soundproofing are characterized by “diminishing returns.” Moving from an STC of 28 to 34 is relatively cost-effective; moving from 40 to 45 can double the project cost.

Cost Dynamics of Acoustic Upgrades (Estimated 2026)

Upgrade Feature	Est. Add-on Cost (per unit)	Value Multiplier
Dissimilar Glass	$100 – $200	Improved sleep/focus
Standard Lamination	$300 – $500	Safety + 99% UV Block
Acoustic Lamination	$450 – $700	Premium silence
Secondary Window	$800 – $1,500	Maximum property value

Indirect Costs: High-STC windows are significantly heavier than standard units. This may require structural reinforcement of the wall or high-capacity hinges and balances, adding 15% to the labor cost. However, the “Sound Premium” in real estate—the increased value of a quiet home in a loud city—often exceeds the installation cost by a factor of three.

Tools, Strategies, and Installation Support Systems

The best window installation for soundproofing relies on a suite of specialized materials that differentiate it from a standard thermal install.

1. Acoustic Caulking: Unlike standard silicone, acoustic sealant remains flexible for decades, preventing it from cracking and creating “sound leaks” as the building shifts.

2. Backer Rods: Closed-cell foam rods are inserted into the gap between the window and the wall to provide a structural backing for the sealant and add a layer of air-pocket insulation.

3. Mass-Loaded Vinyl (MLV) Flashing: Used in the rough opening to add density to the surrounding wall cavity, preventing flanking noise.

4. Low-Expansion Acoustic Foam: Specifically formulated to provide high-density cell structures that absorb vibration, unlike “builder-grade” foam which is too light to block sound.

5. Heavy-Duty Hardware: To support the 40% increase in glass weight associated with high-STC laminates.

6. Laser Leveling: Essential for ensuring the sash seals perfectly against the weatherstripping; a 1mm gap on one side of a sash can negate the benefits of laminated glass.

Risk Landscape: Identifying Acoustic Failure Modes

Even premium products can fail if the “Acoustic Chain” is broken.

• The Resonance Bridge: If the metal spacers between glass panes are not “warm-edge” or foam-based, they can conduct vibrations from the outer pane to the inner pane.

• Sealant Shrinkage: Using cheap, water-based caulk that dries out over 24 months, creating microscopic fissures that allow high-frequency sound to “whistle” through.

• Over-Tightened Frames: If a frame is installed too tightly without shims, it can warp the sash, preventing the weatherstripping from making full contact.

• Inadequate Wall Mass: Installing an STC 45 window in a thin, uninsulated “2×4” stud wall. The sound will simply pass through the wall instead of the window.

Governance, Maintenance, and Long-Term Adaptation

Acoustic performance is not a “fit and forget” metric. It requires ongoing monitoring.

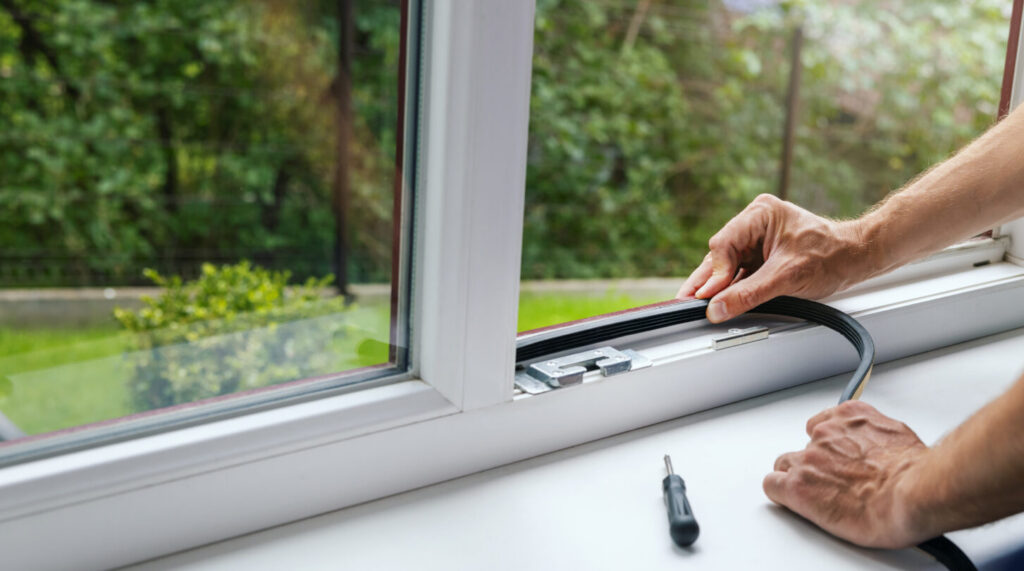

• Annual Weatherstripping Audit: Check for brittleness or compression set. If the rubber gaskets lose their “bounce,” they can no longer provide a sound-tight seal.

• Caulk Inspection Cycle: Every 3 years, inspect the exterior and interior perimeter seals for any signs of separation from the substrate.

• Hardware Lubrication: Ensure the locking mechanisms pull the sash tight against the frame. Over time, friction can prevent a full “lock,” leaving a minute air gap.

Adaptation Trigger Checklist

• New Infrastructure: If a new bus route or light rail is planned, consider upgrading to secondary glazing.

• Draft Detection: If you can feel a draft, you are also hearing noise. Airflow and sound-flow are nearly identical in their requirements for entry.

Measurement, Tracking, and Evaluation

How do we prove the installation was successful?

1. Quantitative Signal: Use a Class 1 Sound Level Meter to measure dBA (weighted for human hearing) before and after. A reduction of 10dB is perceived as “halving” the volume.

2. Qualitative Signal: The “Cocktail Party Effect.” In a successful install, you should be able to hold a whisper-quiet conversation while a bus passes outside.

3. Documentation: Keep the NFRC labels that list the STC/OITC ratings. These are vital for home appraisals in urban markets.

Common Misconceptions and Industry Corrections

• Myth: “Triple-pane is always the best for sound.”

  • Correction: A double-pane window with one laminated pane and a wide air gap will almost always outperform a standard triple-pane window.

• Myth: “Vacuum-sealed windows are silent.”

  • Correction: While vacuum glass is excellent for thermal, sound can still travel through the “micro-pillars” that keep the panes apart.

• Myth: “You can soundproof an old window with heavy curtains.”

  • Correction: Curtains reduce echoes inside a room (absorption), but they do almost nothing to stop sound from entering a room (transmission loss).

• Myth: “Thicker glass is all you need.”

  • Correction: Thickness helps with low frequencies, but without lamination, the “coincidence effect” will still allow certain high-pitched noises through.

Ethical and Practical Considerations

In the pursuit of silence, we must not neglect safety. High-STC windows are extremely difficult to break. In the event of a fire, an emergency exit (egress) window with laminated glass may require a specialized glass-breaking tool. Homeowners must balance the desire for acoustic isolation with the practical necessity of emergency egress.

Furthermore, “Over-Soundproofing” can lead to the “tinnitus effect,” where a room becomes so quiet that the occupants begin to notice the hum of their own nervous system or the sound of their heartbeat. A target interior ambient level of 30–35 dB is generally considered the “sweet spot” for human comfort.

Conclusion: The Synthesis of Silence

The best window installation for soundproofing is an exercise in technical harmony. It is the result of aligning the right glass chemistry with a precision-engineered frame and a meticulous, high-mass installation. As our cities grow louder, the ability to create an acoustic sanctuary is no longer a luxury—it is a fundamental requirement for health and well-being.

By prioritizing the “weakest link” and understanding the physics of dissimilar mass and visco-elastic damping, we can transform the window from a vulnerable aperture into a robust acoustic shield. The ultimate judgment of an installation is not found in a laboratory report, but in the restorative silence of a home where the chaos of the outside world is reduced to a distant, imperceptible memory.
