How to Avoid Window Seal Failure: The Ultimate Engineering

Understanding the mechanics of fenestration longevity requires a shift in perspective. We must view the window as a mechanical assembly with a finite, yet extendable, lifespan. The industry often treats “fogged windows” as an inevitability of aging, but building science suggests otherwise. Most premature failures are the result of specific environmental stressors or installation flaws that could have been mitigated during the planning and maintenance phases.

The challenge for property owners and facilities managers is to move beyond the reactive “replace when broken” mentality. True mastery of the building envelope involves identifying the invisible forces—such as solar pumping and water ponding—that fatigue sealants over time. By dissecting the chemical and structural reasons for IGU degradation, we can develop a rigorous framework for preservation. This article serves as an authoritative exploration into the physics of seal integrity, providing the technical clarity needed to maintain the performance of the residential or commercial envelope indefinitely.

Understanding “how to avoid window seal failure”

To grasp how to avoid window seal failure, one must first acknowledge the inherent instability of the IGU. The air or gas trapped between panes is constantly attempting to equalize with the outside atmosphere. During the day, solar radiation heats the gas, causing it to expand and push outward on the seals; at night, the gas contracts, pulling the seals inward. This phenomenon, known as “solar pumping,” occurs thousands of times over the life of a window. If the seal material lacks the elasticity to accommodate this movement, it will eventually develop microscopic fissures.

A common misunderstanding is that seal failure is exclusively a “bad product” issue. While manufacturing defects exist, the majority of failures occur because the window unit was placed in a situation it wasn’t designed for—such as being installed in a frame with inadequate drainage. If the bottom edge of the IGU sits in standing water because the “weep holes” are clogged, the moisture will eventually break down the secondary sealant through a process called hydraulic pressure.

Oversimplification in this field often leads to the belief that simply buying a “lifetime warranty” window solves the problem. However, warranties rarely cover the labor of replacement or the collateral damage to interior finishes. A strategic approach focuses on the environmental variables: reducing heat absorption through shading, ensuring perfect drainage at the sill, and avoiding high-pressure cleaning methods that can mechanically dislodge the sealant beads.

The Systems Evolution: From Putty to Polyisobutylene

Historically, windows were single sheets of glass held by linseed oil putty. These windows “leaked” air and water by design, allowing the wood to dry out. The shift toward the IGU in the mid-20th century changed the stakes. Suddenly, a window was a pressurized vessel. Early dual-pane units used simple organic sealants that quickly succumbed to UV degradation.

The 1980s and 90s saw the introduction of dual-seal technology. The primary seal, usually made of polyisobutylene (PIB), acts as the gas barrier, preventing argon from escaping. The secondary seal, often silicone or polyurethane, provides structural strength. The evolution continued with “warm-edge” spacers, which replaced highly conductive aluminum with structural foams or stainless steel. These modern materials expand and contract at rates closer to the glass itself, reducing the “shear” stress on the PIB bead.

Today, we are in the era of high-performance chemical engineering. We utilize desiccants—moisture-absorbing beads tucked into the spacers—that can handle the inevitable microscopic amount of water vapor that migrates through the seal over decades. Understanding this evolution is vital because it highlights that the seal is a sacrificial component; its longevity is directly tied to the management of the stressors it faces.

Conceptual Frameworks: The Physics of Seal Stress

1. The Solar Pumping Mental Model

Visualize the window as a set of lungs. Every day the house “breathes” in and out through the glass. The “best” way to prevent failure is to reduce the intensity of these breaths. This is achieved through spectrally selective coatings that reflect heat before it can expand the gas inside the unit.

2. The Drainage Plane Logic

In this framework, the window frame is a gutter. Any water that gets past the glass must have a clear, gravity-fed path to the exterior. If a plan for how to avoid window seal failure does not include an audit of the frame’s internal drainage, it is fundamentally flawed.

3. The Material Expansion Coefficient Matrix

Glass, vinyl, aluminum, and wood all move at different speeds. The seal is the “shock absorber” between these materials. Selecting window materials that are physically similar in their expansion rates (like fiberglass and glass) minimizes the mechanical work the seal must do.

Primary Failure Categories and Technical Triggers

Understanding why a seal fails allows for targeted preventive strategies.

Real-World Scenarios and Climatic Constraints How to Avoid Window Seal Failure

Scenario 1: The High-Altitude Risk

A residence at 7,000 feet experiences lower atmospheric pressure.

• The Risk: The high internal pressure of the IGU at sea level causes the glass to bulge outward at altitude, stretching the seal to its breaking point.

• The Solution: Capillary tubes. These small tubes allow the pressure to equalize during transport and installation, after which they are sealed.

• Failure Point: Installing “flatland” windows at high altitudes without pressure equalization.

Scenario 2: The Dark Frame Trap

A modern home utilizes black-painted vinyl frames on a south-facing elevation.

• The Risk: Black surfaces can reach 160°F in direct sun. This heat transfers to the edge of the IGU, softening the sealant and accelerating solar pumping.

• The Solution: Use pultruded fiberglass or thermally broken aluminum for dark colors, as these materials handle heat without the extreme expansion of vinyl.

Economics of Integrity: Replacement vs. Prevention

The financial impact of seal failure is rarely captured in the initial purchase price.

Lifecycle Cost Dynamics

Strategic Judgment: Proactive maintenance (clearing weep holes and inspecting perimeter caulk) has an ROI that exceeds 300% when considering the cost of premature failure in a typical 15-window home.

The Risk Landscape: A Taxonomy of Decay

Seal failure is a “lagging indicator” of a deeper problem.

1. Stage 1: Seal Stress. Invisible. Desiccants are working overtime to absorb microscopic moisture.

2. Stage 2: Gas Loss. Argon escapes. The window’s U-factor increases, but the view remains clear.

3. Stage 3: Interstitial Condensation. Temporary fogging occurs during cold snaps.

4. Stage 4: Permanent Mineralization. Water evaporates inside the unit, leaving behind calcium or “scum” deposits. The glass is now permanently etched and unrepairable.

Governance, Maintenance, and Long-Term Adaptation

The Seal Integrity Checklist

• Bi-Annual Weep Hole Audit: Pour a small amount of water into the window track. It should exit the exterior holes within seconds.

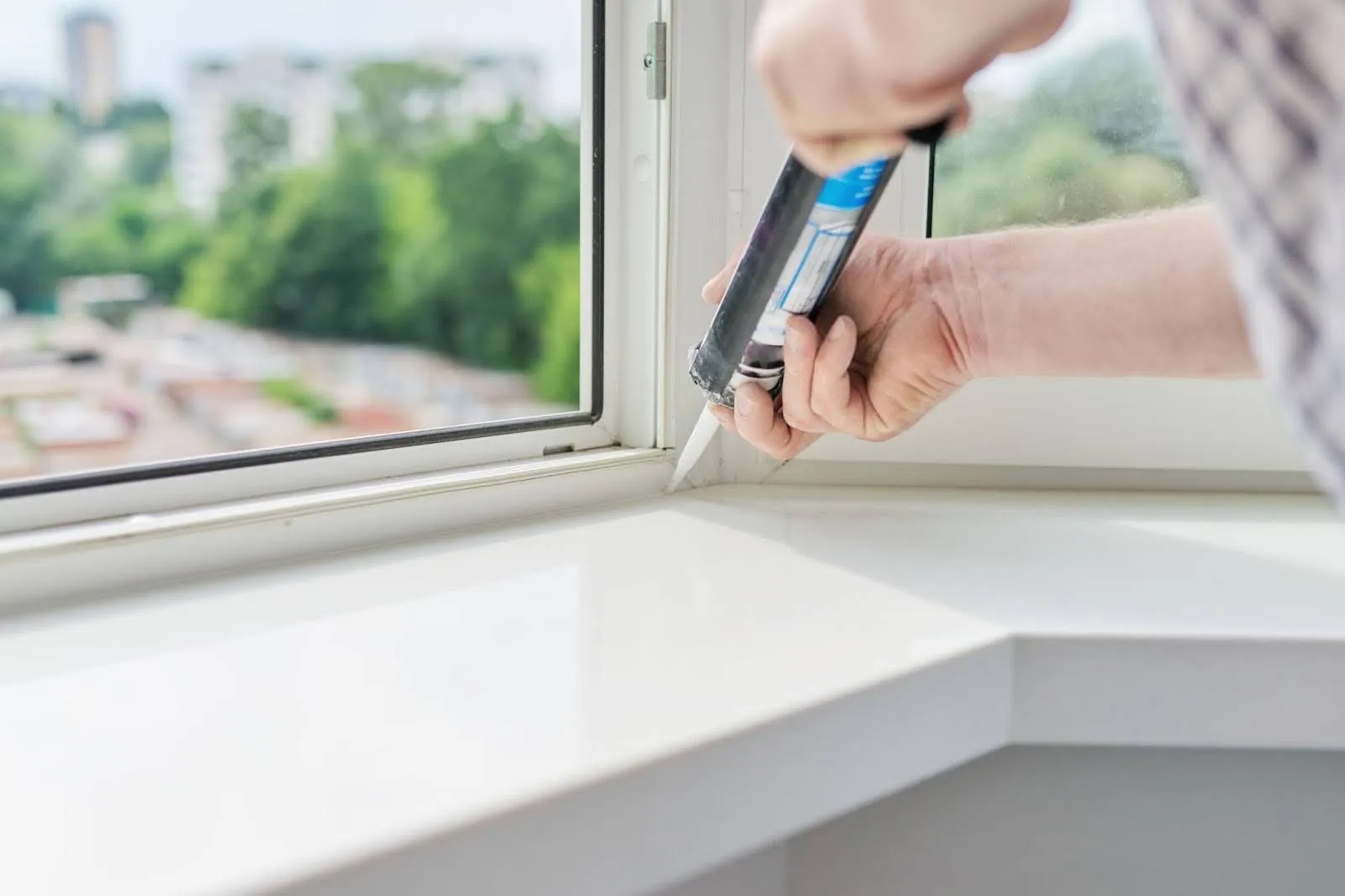

• Perimeter Sealant Inspection: If the caulk between the window and the siding fails, water can bypass the frame and enter the “glazing pocket” from behind, attacking the seal.

• Avoid Pressure Washing: High-pressure water can force its way past the glazing beads and saturate the desiccant-filled spacers.

Measurement, Tracking, and Evaluation Metrics

• Visual Evaluation: Look for “rainbowing” or oil-slick patterns on the glass, which can indicate the glass is touching in the middle (gas loss).

• Thermal Imaging: An infrared camera will show a “hot” or “cold” spot in the center of the glass if the gas has been replaced by air.

• Documentation: Record the manufacture date from the spacer bar. If multiple windows from the same “lot” fail, it suggests a manufacturing batch error rather than environmental stress.

Correction of Common Misconceptions

• Myth: “Foggy windows can be fixed by drilling holes.”

• Correction: “Defogging” services remove the moisture but do not restore the seal or the insulating gas. The window remains thermally compromised.

• Myth: “Triple-pane windows fail faster because they have more seals.”

• Correction: Triple-pane units are often more rigid and better engineered. While there are more seal surfaces, the overall system is typically more resilient to racking.

• Myth: “Lifetime warranties cover seal failure.”

• Correction: Most “limited lifetime” warranties prorate after 10 years, meaning the homeowner pays for 50-80% of the material cost plus 100% of the labor.

Conclusion: The Synthesis of Resilience

Learning how to avoid window seal failure is ultimately about managing the micro-environment of the glazing pocket. A window is not a set-and-forget commodity; it is a mechanical boundary. By ensuring proper drainage, minimizing extreme thermal spikes through shading, and selecting materials that move in harmony, we can extend the life of an IGU from the industry-average 15 years to upwards of 40 years.

The most resilient buildings are those where the unglamorous details—the slope of a sill or the cleanliness of a weep hole—are treated with the same importance as the architectural aesthetic. In the end, the clarity of the glass is merely a reflection of the integrity of the hidden chemistry at its edge.
